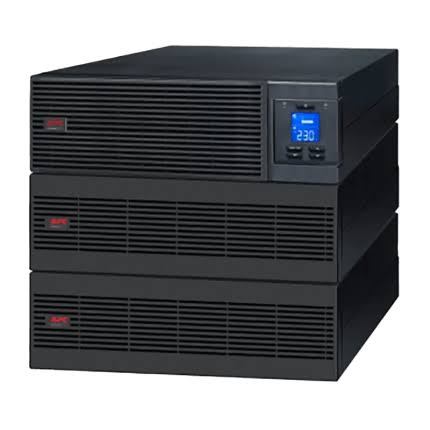

APC Easy UPS On-Line SRV RM 10000VA 230V with External Battery Pack & Rail Kit (SRV10KRILRK)

The APC Easy UPS On-Line SRV RM 10000VA 230V with External Battery Pack & Rail Kit (SRV10KRILRK) is a high-capacity online uninterruptible power supply designed to provide reliable, continuous power protection for critical IT infrastructure. With a 10000VA / 10000W capacity, this UPS is suitable for demanding server rooms, data centers, network environments, storage systems and other applications where power quality and uptime are essential.

The SRV10KRILRK uses double-conversion online technology, continuously converting incoming AC power and regenerating the output to provide stable, conditioned power to connected equipment. This architecture helps protect critical loads from voltage fluctuations, power disturbances and other electrical irregularities while providing zero transfer time between normal and battery operation.

The UPS provides a pure sine-wave output, making it suitable for sensitive servers, storage equipment, networking devices and other modern electronic systems that require clean and reliable electrical power.

With a 10kVA / 10kW rating, the SRV10KRILRK provides a 1:1 power factor, allowing the full 10kVA capacity to be used as 10kW of active power. The output voltage can be configured for 220V, 230V or 240V, providing flexibility for different compatible electrical installations.

The 5U rackmount form factor allows the UPS to be installed in a standard server rack. The package includes a rail kit, simplifying installation in rack-mounted IT environments. The product also includes an external battery pack, providing extended runtime compared with a standard internal-battery configuration.

For applications requiring even longer backup times, the SRV10KRILRK supports up to four additional external battery packs. This scalable runtime capability allows organizations to increase battery autonomy according to their specific requirements.

An integrated multifunction LCD status and control console provides detailed information about UPS operating conditions, load levels, battery status, input and output conditions, alarms and operating modes. This makes it easier for administrators and technicians to monitor and manage the power protection system.

The UPS also features an Intelligent Card Slot, allowing compatible APC network management cards to be installed for remote monitoring and management. Communication options include USB and RS-232, providing additional connectivity for UPS management and controlled shutdown applications.

The SRV10KRILRK includes an automatic and manual internal bypass, which can transfer connected loads to utility power during certain UPS overload or fault conditions. It also supports Emergency Power Off (EPO) for installations requiring an emergency shutdown function.

For improved energy efficiency, the UPS supports ECO Mode, which can bypass certain unused power-conversion components when utility conditions are suitable. The system also incorporates intelligent battery management and temperature-compensated charging to help optimize battery performance and service life.

The APC Easy UPS On-Line SRV RM 10000VA 230V SRV10KRILRK is an excellent choice for organizations requiring high-capacity, rack-mounted power protection with extended runtime. Its combination of 10kVA/10kW capacity, double-conversion technology, pure sine-wave output, external battery capability, LCD monitoring, Intelligent Card Slot and included rail kit makes it well suited to critical server and data-center applications.
