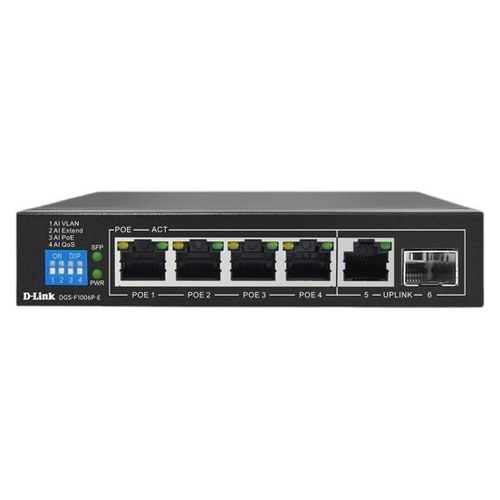

D-Link DGS-F1006P-E 6-Port 250m Gigabit PoE Switch with 4 PoE Ports and 2 Uplink Ports

The D-Link DGS-F1006P-E 6-Port 250m Gigabit PoE Switch is a compact and reliable networking solution designed for IP surveillance systems, wireless access points, IP phones, and other Power over Ethernet devices. It combines Gigabit Ethernet connectivity with PoE+ power delivery, allowing compatible devices to receive both network data and electrical power through a single Ethernet cable.

The switch provides four 10/100/1000 Mbps Gigabit PoE ports for connecting PoE-enabled devices such as IP cameras, wireless access points, and IP phones. In addition, it features one 10/100/1000 Mbps Gigabit RJ-45 uplink port and one SFP uplink port, providing flexible options for connecting the switch to an NVR, core switch, router, or wider network infrastructure.

The DGS-F1006P-E supports IEEE 802.3af and IEEE 802.3at Power over Ethernet, providing up to 30W of PoE power per port with a total PoE power budget of 60W. This allows compatible network devices to be powered directly through Ethernet cabling, reducing the need for separate power adapters and simplifying installations in locations where electrical outlets may not be readily available.

One of the standout features of the DGS-F1006P-E is its 250-metre Extended PoE mode. When Extend mode is enabled, the switch can deliver PoE connectivity to compatible devices at distances of up to 250 metres, making it particularly useful for surveillance deployments covering parking areas, compounds, warehouses, campuses, and other locations where standard Ethernet distances may not be sufficient.

The switch includes selectable operating modes through its DIP switch controls. Extend mode enables the long-distance PoE function, while VLAN mode can isolate the PoE ports to help reduce network storms and improve network security. QoS mode can prioritize video traffic for smoother surveillance transmission, while the PoE mode can automatically detect connected PoE devices and power-cycle ports when necessary.

For reliable network operation, the DGS-F1006P-E supports IEEE 802.3x Flow Control and uses store-and-forward switching. It also supports Auto MDI/MDIX, allowing connected Ethernet devices to be detected automatically without requiring crossover cables.

The switch is designed with 6KV surge/lightning protection, helping protect the device against electrical surges and making it suitable for demanding surveillance and outdoor-adjacent network installations. Its compact desktop form factor and fanless design provide quiet operation and allow convenient placement in offices, security rooms, network cabinets, and other space-sensitive environments.

Whether you are building an IP camera surveillance system, deploying wireless access points, or extending PoE connectivity across a larger property, the D-Link DGS-F1006P-E provides Gigabit performance, flexible uplink connectivity, long-range PoE, and convenient installation features in a compact switch.
